Self-Propelled Battery Operated Slab Scissor Lift

Home Product Details

SELF PROPELLED SLAB SCISSOR LIFT (BATTERY OPERATED)

DAEDALUS Self Propelled Slab Scissor Lifts are built to deliver Extraordinary Performance and Versatility. These indigenously designed and manufactured scissor lifts boast Robust Quality, Excellent Stability & Long-lasting Efficiency. They are exceptionally mobile, letting you maneuver in tight spaces. They are an ideal choice for indoor and outdoor worksites on flat, leveled, and firm surfaces.

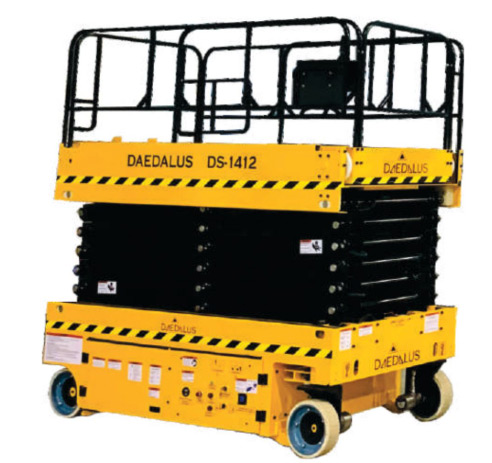

Daedalus DS-1412 self propelled battery operated slab scissor lift for indoor industrial use

FEATURES:

  • Extension Deck
  • Anti-Skid Platform
  • Dual Front Wheel Hydraulic Drive
  • Foldable Guardrails (Optional)
  • Pull out battery tray
  • Electric line to platform
  • Solid Non-Marking tyres
  • Electro-magnetic Brakes
  • Forklift Pockets

SAFETY SYSTEMS:

  • Manual emergency relief valves.
  • Overload sensors & Indicators (Optional).
  • Tilt Sensors.
  • Flashing Beacons.
  • In-built smart battery charger.

Li ION BATTERY TECHNOLOGY

SPECIFICATIONS


MODELS DS-608 DS-808 DS-810 DS-1010 DS-1212 1.9V DS-1212 DS-1412
Maximum Working Height 6 m 8 m 8 m 10 m 12 m 12 m 14 m
Extension Deck 0.9 m 0.9 m 0.9 m 0.9 m 0.8 m 0.9 m 0.9 m
Platform Width 0.8 m 0.8 m 1.0 m 1.0 m 1.2 m 1.2 m 1.2 m
Vehicle Dimensions (LWH) 2.15 x 0.85 x 2.2 2.15 x 0.85 x 2.3 2.15 x 1.05 x 2.3 2.5 x 1.05 x 2.5 1.25 x 1.25 x 2.6 2.5 x 1.25 x 2.7 2.5 x 1.25 x 2.7
Ground Clearance 90 mm 90 mm 90 mm 90 mm 90 mm 90 mm 90 mm
Maximum Occupancy 2 Person 1 Person

2 Person

Lift Capacity

350 Kgs



Extension Deck

125 Kgs



Power Source

24V DC (Four 6V 225Ah Batteries)



Weight 1600 Kgs 1850 Kgs 2100 Kgs 2200 Kgs 2400 Kgs 2900 Kgs 3050 Kgs

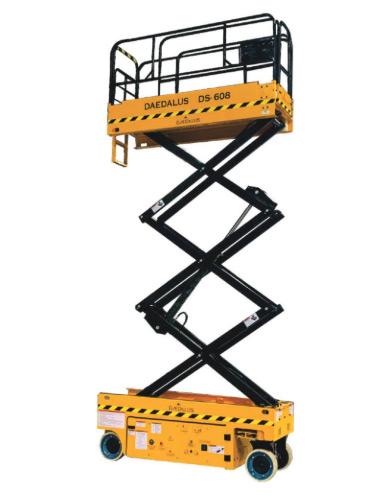

Daedalus DS-608 self propelled battery operated slab scissor lift with raised platform

MANUAL PUSHABLE SCISSOR LIFTS

DAEDALUS Manual Pushable Scissor Lifts are an Economical Worksite solution without any compromise on machine’s safety. These scissor lifts are Manually Maneuverable while their raising & lowering operations can be performed by AC / Battery Power Source as per requirement. These machines are equipped with Pull out Screw Jack Stabilizers that enable them to level the machines. The solid Tyres on these machines enable you to utilize these machines in all conditions. These machines exhibit Least Downtime and require Minimum maintenance, thus enhancing your onsite Productivity.

FEATURES:

  • Optional Power Source (AC / Battery Pack)
  • Anti-Skid Platform.
  • Foldable Guardrails (Optional).
  • Dual Control.
  • Forklift Pockets

SAFETY SYSTEMS:

  • Manual Stabilizers
  • Max. Height cut off Switch
  • Flashing Beacon
  • Manual emergency relief valve

SPECIFICATIONS


MODELS DS-608M / DS-608AC DS-808M / DS-808AC DS-1010M / DS-1010AC DS-1212M / DS-1212AC DS-706 AC
Maximum Working Height 6 m 8 m 10 m 12 m 7 m
Platform Width 1.2 m 1.2 m 1.2 m 1.2 m 0.65 m
Guardrail Height 1.1 m 1.1 m 1.1 m 1.1 m 1.1 m
Vehicle Dimensions (LWH) 2.15 x 1.25 x 2.13 2.15 x 1.25 x 2.23 2.15 x 1.25 x 2.33 2.15 x 1.25 x 2.56 1.70 x 0.65 x 2.18
Ground Clearance 120 mm 120 mm 120 mm 120 mm 120 mm
Maximum Occupancy**
2 Person

1 Person
Lift Capacity
350 Kgs

225 Kgs
Power Source 24V DC (Four 6V 225Ah Batteries) / 230V 50Hz Single Phase Supply


230V 50Hz
Weight 1700 / 1400 Kgs 1800 / 1500 Kgs 2200 / 1900 Kgs 2600 / 2300 Kgs 700 Kgs
