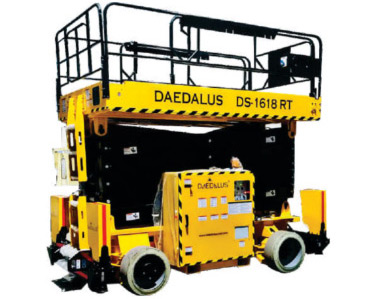

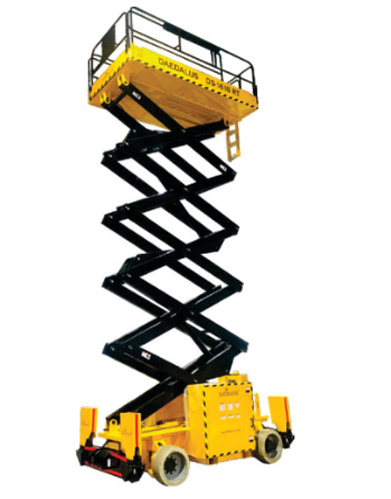

ROUGH TERRAIN SLAB SCISSOR LIFTS (ELECTRIC OPERATED)

DAEDALUS Self Propelled Rough Terrain Scissor Lifts are designed to outperform in challenging and harsh worksite conditions. These Battery Powered Emission free machines with their Rugged Design provide you with Unmatched Productivity with their high lifting capacity and increased workspace for larger loads. These are equipped with automatic self leveling stabilizers which deliver unmatched Stability for a better worksite experience. These Lifts are equipped with Robust Electric Drive Technology to maximize on-site productivity. These machines are an ideal choice they’re the perfect machines for big outdoor jobs where Ample Platform Workspace is Critical.

FEATURES:

• Extension Deck.
• Anti-Skid Platform.
• Electric Drive.
• Foldable Guardrails (Optional).
• Swing out doors to access and pull out battery tray.

SAFETY SYSTEMS:

• Manual relief valves.
• Electro-magnetic Brakes.
• Overload sensors & Indicators.
• Tilt Sensors.
• Limit Switches.
• Flashing Beacons & Horns.
• Automatic Hydraulic Stabilizer (Optional).

SPECIFICATIONS

MODELS	DS-1218 RT	DS-1418 RT	DS-1618 RT	DS-1212M / DS-1212AC	DS-706 AC
Maximum Working Height	12 m	14 m	16 m	12 m	7 m
Extension Deck	1.2 m	1.2 m	1.2 m	1.2 m	0.65 m
Vehicle Dimensions (LWH)	3.5 x 1.8 x 3.0	3.5 x 1.8 x 3.2	3.5 x 1.8 x 3.2	1.1 m	1.1 m
Ground Clearance at centre	185 mm / 230 mm	185 mm / 230 mm	185 mm / 230 mm	2.15 x 1.25 x 2.56	1.70 x 0.65 x 2.18
Ground Clearance (Minimum near the Wheel)	90 mm / 150 mm	90 mm / 150 mm	90 mm / 150 mm	120 mm	120 mm
Maximum Occupancy	3 Person				1 Person
Lift Capacity		500 Kgs			225 Kgs
Gradeability		20%			230V 50Hz
Extension Deck		125 Kgs		2600 / 2300 Kgs	700 Kgs
Power Source	48V DC (eight 6V 350Ah)
Weight	4800 Kgs	5200 Kgs
